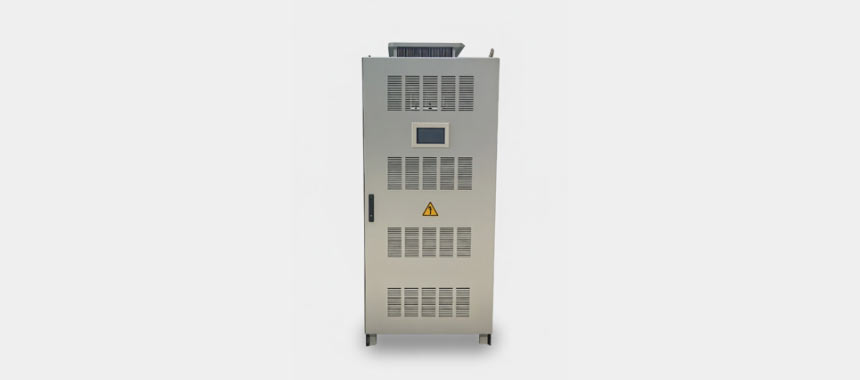

Active Harmonic Filter Manufacturers in Pune
PQI Electrical & Automation is Prominent Active Harmonic Filter Manufacturers in Pune, Suppliers, Dealers and Services in Pune .We offer high-quality and effective Active Harmonic Filter (AHF) systems that are used to reduce power quality and remove harmonic distortion in electrical systems. Having experience in electrical and automation systems, we provide tailor-made Active Harmonic Filters, which improve the efficiency of the system, safeguard delicate equipment, minimize overheating losses, and ensure that the power quality meets the standards.
About Active Harmonic Filter
An Active harmonic filter (AHF) is a modern electrical equipment that is used to detect and track, and remove harmonic currents in power systems to provide cleaner and more stable electricity. In PQI Electrical and Automation, we offer high-performance Active Harmonic Filters, which is an active compensation of harmonics, reactive power and unbalanced loads in real time.
Types of Active Harmonic Filter
As leading Active Harmonic Filter Manufacturers in Pune, offering the following Types:
- Shunt Active Filters (Parallel): The most widespread type, which is in parallel with the non-linear load. It is a source of current, which injects compensating harmonic currents to counteract the currents generated by the load.
- Series Active Filters: These come in series with the line and are usually installed to remove voltage harmonics, sags and swells by injecting compensating voltages.
- Hybrid Active Filters: A passive filter (which can be used to remove low-order harmonics) and an active filter (which can be used to remove higher-order/dynamic harmonics). They find application in cost-efficient, high-power harmonic reduction.
- Active Power Conditioners (APQC): Premium, combined units, which operate as shunt and series filters and can control current harmonics, voltage harmonics, voltage sags, and power factor at the same time.
Technical Specifications of Active Harmonic Filter
As well-known Active Harmonic Filter in Pune, we provide Specifications such as:
| System Voltage | 380V / 400V / 415V / 480V AC |
| Voltage Range | ±15% of Rated Voltage |
| Frequency | 50 Hz / 60 Hz |
| Rated Current Capacity | 25A to 600A (Expandable with Parallel Modules) |
| Harmonic Compensation Range | Up to 2nd to 50th Order Harmonics |
| Total Harmonic Distortion (THDi) Reduction | ≤ 5% (Depending on System Conditions) |
| Response Time | < 10 ms |
| Compensation Type | 3-Phase 3-Wire / 3-Phase 4-Wire |
| Filtering Method | Real-Time Dynamic Harmonic Compensation |
| Reactive Power Compensation | Yes (Optional / Integrated) |
| Power Factor Correction | Up to 0.99 |
| Efficiency | ≥ 97% |
| Switching Technology | IGBT-Based PWM Technology |
| Communication Interface | RS485 / Modbus / Ethernet (Optional) |
| Display & Monitoring | LCD / Touch Screen with Real-Time Data |
| Cooling Method | Forced Air Cooling / Smart Fan Control |
Features of Active Harmonic Filter
We are Active Harmonic Filter Suppliers in Pune, offering all upgraded multiple features such as:
- Harmonic Compensation in Real-Time: Our AHFs constantly identify and open up harmonic currents on the fly to provide a clean and stable power supply.
- Reactive Power Correction: Active compensation of Reactive power is done in our filters so that the total power factor of your electrical system is enhanced.
- Load Balancing: We provide AHFs that automatically equalize the unbalanced loads to minimize the neutral currents and voltage distortions.
- Fast Response Technology: High-speed power electronics are used in our filters to react immediately to changes in the load to eliminate voltage and current distortions.
- Smart Microprocessor Control: Our smart controllers are given to AHFs, which measure electrical parameters, record data and automatically reduce harmonic mitigation.
Applications of Active Harmonic Filter
As Active Harmonic Filter Dealers in Pune, our all types are used in various types of industrial sectors such as:
- Manufacturing Industries: We provide AHFs to a factory that has non-linear loads such as CNC machines, welding machines, injection molding machines, and heavy motors to minimize harmonics and enhance the efficiency of the system.
- Data Centers & IT Parks: Our filters guarantee constant voltage, less harmonics, and stability to conduct servers and UPS systems and sensitive electronic devices.
- Hospitals and Health Care Centres: We supply AHFs to sustain the power of medical devices, imaging machines and other vital equipment cleanliness.
- Commercial Complexes & Malls: Our solutions are used to keep the power quality in buildings that have lighting, elevators, air conditioning and IT loads.
- Process Industries: AHFs that we provide are used in chemical, pharmaceutical, textile and food processors where harmonic distortion can be a problem with sensitive machinery and control systems.
Why choose us?
As Providers of high-quality Active Harmonic Filter Services in Pune Here’s why we stand out:
- Advanced Technology: Our AHFs have smart microprocessor-based controllers and high-response power electronics to provide harmonic correction in real time.
- Customized Solutions: Our filters are made to your profile of loads, harmonic conditions and industry standards to have the best performance.
- Energy Saving and Cost Reduction: Our solutions minimize the losses in the system, enhance power factor, and assist in minimizing electricity penalty and wastage of energy.
PQI Electrical & Automation is well known Active Harmonic Filter Manufacturers in Pune, Suppliers, Dealers and Services in Pune. Our products are state-of-the-art Active Harmonic Filter (AHF) systems, which guarantee clean, stable, and efficient power to current electrical systems. Our filters have in-house harmonics filtering, reactive power correction, and load balancing in operation, and are used to protect delicate equipment and provide efficient power use.
FAQ's
Our AHFs will constantly check the power system and inject compensating currents to neutralize harmonics, correct reactive power, and balance unbalanced loads.
Our filters are also apt in manufacturing industries, data centers, hospitals, commercial complexes, process industries, renewable energy systems, as well as in VFD-driven motor applications.
Yes, Active Harmonic Filters not only reduce harmonics, but they also give reactive power compensation, and this improves the overall power factor.
