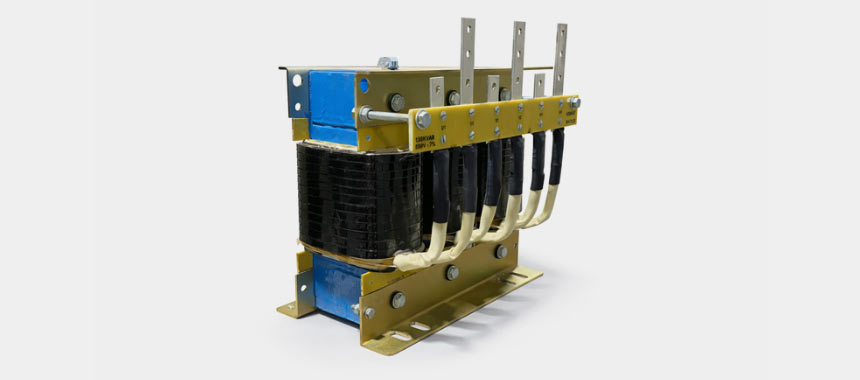

Detuned Reactor Manufacturers in Pune
PQI Electrical & Automation is Prominent Detuned Reactor Manufacturers in Pune, Suppliers, Dealers and Services in Pune .We offer superior quality Detuned Reactors that are designed to safeguard power systems, enhance power quality and make capacitor banks and APFC panels work reliably. We also have specially designed detuned reactors, which minimize harmonic currents, restrict resonance and overloading of capacitors in industrial and commercial systems.
About Detuned Reactor
A Detuned Reactor is an electrical appliance that is used as a form of protection against harmonic distortion and resonance in power networks, to capacitor banks and APFC (Automatic Power Factor Correction) systems. We are offering high-quality detuned reactors at PQI Electrical and Automation, which is important in the safe and reliable functioning of reactive power compensation equipment.
Types of Detuned Reactor
As leading Detuned Reactor Manufacturers in Pune, offering the following Types:
- 5% (210Hz at 50Hz): It is utilized in systems that have lower harmonic distortion.
- 7% (189 Hz at 50Hz): This is the most popular standard that is used in general industry to filter 5th and higher harmonics.
- 14% (134 Hz at 50Hz): Applied to heavily distorted networks with 3rd harmonic components of importance.
Technical Specifications of Detuned Reactor
As well-known Detuned Reactor in Pune, we provide Specifications such as:
| Rated Voltage | 415 V / 690 V (can vary based on system) | Maximum operating voltage for which the reactor is designed. |
| Rated Current | 10 A – 2000 A (based on application) | Maximum continuous current the reactor can handle. |
| Frequency | 50 Hz / 60 Hz | Operating frequency of the AC supply. |
| Reactor Type | Series / Detuned / Harmonic Filter Reactor | Type of detuned reactor used. |
| Inductance (L) | 1 mH – 20 mH (typical) | Inductive reactance to limit harmonic currents. |
| Reactance (X) | 2% – 7% of system voltage | Percentage reactance relative to system voltage. |
| Resistance (R) | 0.1 – 1% | Low ohmic resistance to minimize losses. |
| Harmonic Compensation | Tuned / Detuned for 5th, 7th, 11th, 13th harmonics | Mitigation of specific harmonic currents in power system. |
| Temperature Rise | ≤ 65°C above ambient | Ensures safe operation and longevity. |
| Standards Compliance | IEC 61378-1, IEEE Std 519, IS 2026 | International and national standards for reactors and harmonics. |
| Mounting | Floor / Wall / Panel Mounted | Installation flexibility based on plant layout. |
Features of Detuned Reactor
We are Detuned Reactor Suppliers in Pune, offering all upgraded multiple features such as:
- Enhanced Capacitor Life: We come up with reactors with minimal stress on capacitors, hence prolonging their service life.
- Low Loss Design: The magnetic cores and conductors of our detuned reactors are made of high-quality materials to reduce the loss of energy and enhance system efficiency.
- Strong and Stable Construction: Our materials are high-grade and we insulate them to achieve mechanical strength, thermal stability and reliability in the long run.
- Customizable Ratings: Detuned Filter Reactor of system voltage, current, and harmonic ratings to have optimal performance.
- Easy Integration: Available reactor panels, capacitor banks, and other equipment used to compensate reactive power are compatible with our detuned reactors.
Applications of Detuned Reactor
As Detuned Reactor Dealers in Pune, our all types are used in various types of industrial sectors such as:
- APFC Panels: We have provided detuned reactors to be used in Automatic Power Factor Correction panels to guard capacitor banks against harmonic current and resonance.
- Industrial Plants: They are the perfect fit in our reactors as they can serve manufacturing plants, chemical plants, steel plants, and the textile industries with non-linear and heavy loads that do not generate harmonics.
- Commercial Complexes: Our reactors can be used in shopping malls, office buildings, and IT parks so that APFC panels and reactive power compensation systems will operate steadily.
- Data Centers & IT Facilities: Detuned Capacitor Bank contribute to the operation of clean power in servers, UPS systems, and sensitive electronic devices by regulating the harmonic distortion.
- Renewable Energy Systems: We sell solar inverter reactors, wind turbines, and hybrid energy systems to avoid capacitor overloading and increase the quality of power.
Why choose us?
As Providers of high-quality Detuned Reactor Services in Pune Here’s why we stand out:
- High-Quality Components: Our magnetic cores, conductors and insulation material of high quality are used with the aim of providing durability, low losses, and prolonged working life.
- Customized Solutions: Our reactors are tuned to your voltage, current and harmonic needs to offer maximum performance to your system.
- Harmonic & Resonance Control: Harmonic currents are effectively suppressed and resonance avoided in our reactors, and this is one of the reasons why capacitor banks and APFC panels can be safely operated.
PQI Electrical & Automation is well known Detuned Reactor Manufacturers in Pune, Suppliers, Dealers and Services in Pune .Our Detuned Reactors are dependable and high-performance, and secure capacitor banks, control harmonics, and deliver safe and efficient operation of electrical systems. Our reactors eliminate resonance, decrease harmonic currents and extend the life of reactive power compensation equipment.
FAQ's
This is appropriate to our reactors in APFC panels, industrial plants, commercial complexes, hospitals, data centers, renewable energy systems and power distribution networks.
They do, but they reduce the harmonic currents flowing to the capacitor banks and protect the system and ensure improved power quality.
With harmonic stress and overcurrent reduced, detuned reactors do extend the life of capacitors by a significant margin.
