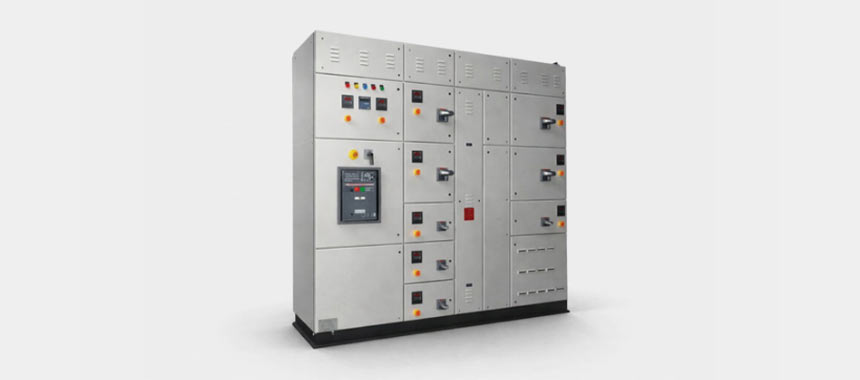

PCC and MCC Manufacturers in Pune
PQI Electrical & Automation is Prominent Low Voltage PCC/MCC Panels Manufacturers in Pune, Suppliers, Dealers and Services in Pune. We offer high-performance Low Voltage PCC (Power Control Center) and MCC (Motor Control Center) Panels that are to guarantee safe, efficient, and reliable power distribution to industrial and commercial loads. Our experience in electrical automation and power management provides us with high-quality and robust panels that conform to industry standards and other specific operational needs.
About Low Voltage PCC/MCC Panels
Low Voltage PCC (Power Control Center) and MCC (Motor Control Center) Panels are important electrical systems of distribution, which are used to control, monitor as well and protect power flow in an industrial and commercial facility. The purpose of PCC panels is mainly to distribute the electrical power that is supplied by the main supply to the different feeder circuits so as to ensure that the power is safely and efficiently managed in the entire facility.
Types of Low Voltage Panels PCC/MCC
As leading Low Voltage Panels PCC/MCC Manufacturers in Pune, offering the following Types:
- Power Control Centre (PCC) Panel: It is the principal panel that supplies power to other sub-panels and heavy machinery when a transformer is used to supply power to the panel. Majorly in use are Air Circuit Breakers (ACBs), Molded Case Circuit Breakers (MCCBs) and large busbars.
- Motor Control Center (MCC): This is a centralized unit that is used to protect and control electrical motors. It consists of starters (DOL, Star-Delta), contactors and protective relays.
- Intelligent Motor Control Center (IMCC) Panel: A new, sophisticated MCC, which is based on communication protocols (such as PROFIBUS or Modbus) to remotely monitor and diagnose motors.
- Variable Frequency Drive (VFD) Panel: This is a special panel that regulates the speed and torque of the motor to achieve the best possible energy consumption and efficiency.
- Automatic Power Factor Control (APFC) Panel: A system to allow the automatic control of the power factor, which lowers electricity costs and enhances the efficiency of the system.
Technical Specifications of Low Voltage PCC/MCC Panels
As well-known Low Voltage PCC/MCC Panels in Pune, we provide Specifications such as:
| Rated Voltage | Up to 415V AC |
| Rated Frequency | 50 Hz / 60 Hz |
| Rated Insulation Voltage | Up to 690V |
| Rated Current | Up to 6300 Amps (as per requirement) |
| Short Circuit Withstand Capacity | Up to 50 kA for 1 sec (or as specified) |
| Busbar Material | High Conductivity Copper / Aluminum |
| Busbar Insulation | Heat Shrinkable Sleeves / Epoxy Coated |
| Form of Separation | Form 2 / Form 3 / Form 4 |
| Degree of Protection | IP42 / IP54 / IP55 (as required) |
| Enclosure Material | CRCA Sheet Steel |
| Surface Finish | Powder Coated with 7-Tank Process |
| Mounting Type | Floor Mounted / Wall Mounted |
| Cable Entry | Top / Bottom (as per design) |
| Control Voltage | 110V / 230V AC or 24V DC |
| Compliance Standards | IS 8623 / IEC 61439 |
Features of Low Voltage PCC/ MCC Panels
We are Low Voltage PCC/ MCC Panels Suppliers in Pune, offering all upgraded multiple features such as:
- Higher Protection: We combine MCCBs, ACBs, relays, and overload protection devices to ensure that the electrical system is not exposed to short circuiting, overloading and faults.
- Modular and Customizable Design: PCC panel have customizable panel designs that are designed in accordance with your load requirements and operational needs.
- Easy Maintenance: PCC & MCC Panel provide good interlocking systems, easy labelling, and ergonomic designs.
- High Operational Reliability: We employ the highest quality electrical parts, which increase performance, minimize downtimes and improve stability of the system in general.
- Standards Compliance: MCC Electrical Control Panel are produced according to the various applicable standards of IS/IEC in order to be safe, quality and regulatory compliant.
Applications of Low Voltage PCC/MCC Panels
As Low Voltage PCC/MCC Panels Dealers in Pune, our all types are used in various types of industrial sectors such as:
- Process Industries: MCC panel offering quality power management systems to industries like cement, steel, pharmaceutical, and food processing without failure to run through.
- Business Structures: Our panels are installed in malls, offices, hospitals and hotels to enable safe and effective distribution of electrical power.
- Infrastructure Projects: Power Control Center Panel serve the power management needs in the airports, Metro stations, water treatment stations, and other large-scale infrastructure facilities.
- Power Generation and Utilities: MCC Electrical Control Panel provide panels to be used in the substations and utility applications to regulate feeders and also ensure that the system is stable.
- HVAC/Pumping Systems: We manage Power Control Center Panel to control the motors in the HVAC systems, compressors and pumping stations.
Why choose us?
As Providers of high-quality Low Voltage PCC/MCC Panels Services in Pune Here’s why we stand out:
- Technical Expertise: We possess good experience in electrical automation and power distribution to provide solutions that would increase efficiency and safety.
- Standards compliance: We deliver compliance to relevant Standards of IS/IEC Standards and industry standards to minimum safety and reliability.
- End to End-to-end support: We offer total support in the form of design and manufacture to the installation instructions, and after-sales services.
PQI Electrical & Automation is well known Low Voltage PCC/MCC Panels Manufacturers in Pune, Suppliers, Dealers and Services in Pune. Our Low Voltage PCC/MCC Panels provide safe power distribution, effective motor control and are reliable and efficient. We are concerned with quality engineering, tailored solutions, and integrity to industry standards to make the systems work better and be safe in their operations.
FAQ's
Yes, we have customized panel solutions fully depending on your load capacity, application type and site solutions.
MCCBs, ACBs, protective relays, overload protection, proper earthing systems, and interlocking mechanisms are incorporated to keep the maximum safety standards.
Yes, we offer some technical assistance in installation and good after-sales services to maintain a smooth and efficient operation of panels.
