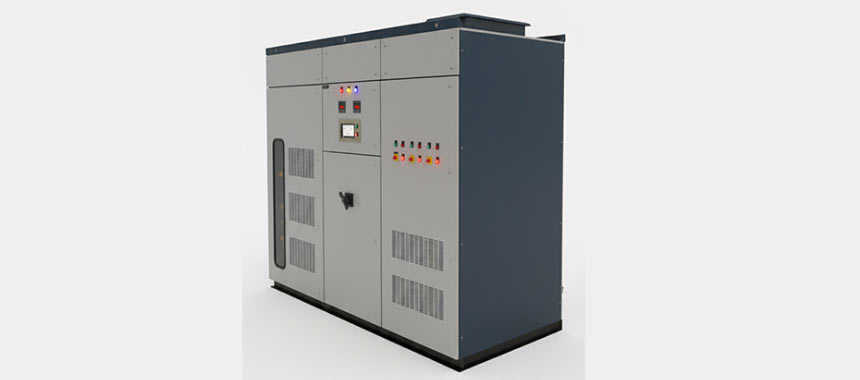

Hybrid APFC Panel Manufacturers in Pune
PQI Electrical & Automation is leading Hybrid APFC Panel Manufacturers in Pune, Suppliers, Dealers and Services in Pune .We provide the high-performance Hybrid APFC Panels that provide accurate, quick and dependable power factor correction of the demanding electrical conditions. We are very concerned with the quality and innovation, and thus we design Hybrid APFC Panels which minimize the reactive power losses, regulate harmonics, minimize switching disturbances, and avoid electricity penalties.
About Hybrid APFC Panel
A Hybrid APFC (Automatic Power Factor Correction) Panel is a powerful power management system that integrates both contactor-based switching as well as switching into a single system. PQI Electrical and Automation offers Hybrid APFC Panels that are specifically designed to offer quick, precise, and dependable power factor correction in locations with unsteady and hastening loads.
Types of Hybrid APFC Panel
As leading Hybrid APFC Panel Manufacturers in Pune, offering the following Types:
- Hybrid Thyristor/Contactor APFC Panels: Hybrid thyristor/contactor panels are used where slow-switching contactors are needed to serve stable loads, and rapidly changing loads need to be served by thyristor (SCR) modules at a cost-effective high-speed solution.
- Hybrid Panels with Static Var Controller (SVC): Incorporates Static Var Controllers with capacitor banks, with reactive power compensation provided fast and step-less.
- Active Power Filter (APF/AHF) + Capacitor Hybrid Panels: This is an integration of Active Harmonic Filters and capacitor banks that are suited for systems that require harmonic suppression as well as reactive power compensation.
- SVG/ Hybrid Dynamic PFC Panels: PLCs use the Static Var Generators (SVG) with capacitor-reactor banks to provide instant, accurate and continuous adjustment of the power factor.
- Modular Hybrid APFC Panels: These panels are designed with kVAR modules that can be scaled to allow load changes of seasonal or variable site-specific changes.
Technical Specifications of Hybrid APFC Panel
As well-known Hybrid APFC Panel in Pune, we provide Specifications such as:
| Rated Voltage | 415V AC ±10% |
| Frequency | 50 Hz |
| Phase | 3 Phase, 4 Wire |
| Power Factor Control Range | 0.80 Lag to 0.99 Lag |
| Control Relay | Microprocessor / Intelligent APFC Relay |
| Switching Type | Hybrid (Contactor + Thyristor Based) |
| Thyristor Switching Response Time | < 20 milliseconds |
| Capacitor Type | Heavy Duty, Low Loss, Self-Healing Capacitors |
| Capacitor Step Rating | 5 kVAr to 50 kVAr per step (Customizable) |
| Number of Steps | 6 to 16 Steps (As per requirement) |
| Reactor | Detuned Reactor (Optional for Harmonic Control) |
| Protection | MCCB/MCB, HRC Fuses, Overload & Short Circuit Protection |
| Busbar Material | Copper / Aluminum |
| Enclosure | CRCA Sheet Steel, Powder Coated |
| Degree of Protection | IP42 / IP54 (As required) |
| Cooling System | Natural / Forced Ventilation |
| Mounting Type | Floor Mounted |
| Compliance | As per IS / IEC Standards |
Features of Hybrid APFC Panel
We are Hybrid APFC Panel Suppliers in Pune, offering all upgraded multiple features such as:
- Dual Switching Technology: We offer a mix of contactor-based switching and thyristor-based switching to offer economical and quick correction of the power factor.
- Real-time reaction: With our thyristor modules, the switching capacitor is almost instantaneous; therefore, the panel would be useful in dynamic and quickly changing loads.
- Increased Switching Transient: Hybrid Power Factor Correction Panel reduce capacitor switching voltage spikes and current surges, which enhances the stability of the system in general.
- Improved Power Quality: Hybrid APFC System assist in ensuring a constant and high power factor and low voltage variability.
- Smart Relay with Intelligent Microprocessor: Our high-end APFC relays constantly check the electrical parameters and provide accurate compensation of reactive power.
Applications of Hybrid APFC Panel
As Hybrid APFC Panel Dealers in Pune, our all types are used in various types of industrial sectors such as:
- Manufacturing Industries: We also provide Hybrid APFC Panels to be used in factories whose loads vary, like CNC machines, compressors, injection molding machines and heavy-duty motors.
- Welding & Fabrication Units: APFC Hybrid Panel are well-suited for the uses of welding in which transient changes in load demand require urgent reactive power maintenance.
- Elevator & Escalator Systems: Our services offer quick responsiveness to buildings that have elevators and escalators that lead to constant load variations.
- Hospitals and Health-Care Centres: Our APFC Hybrid Panels have a stable voltage and quality of power for delicate medical apparatus and vital systems.
- Commercial Complexes & IT Parks: We assist in the optimization of energy consumption in malls, office buildings and IT facilities which have dynamic electrical loads.
Why choose us?
As Providers of high-quality Hybrid APFC Panel Services in Pune Here’s why we stand out:
- Experienced knowledge in Solutions to power quality: We carry effective technical expertise in electrical and automation systems, which guarantees effective and accurate hybrid power factor correction.
- Advanced Hybrid Technology: Our switching is a mix of thyristor switching and contactor switching with high response time and low-cost performance.
- Customized Panel Design: Our Hybrid APFC Panels are designed and come to meet your load pattern, level of harmonics and industry requirements.
PQI Electrical & Automation is well known Hybrid APFC Panel Manufacturers in Pune, Suppliers, Dealers and Services in Pune. We offer high-quality and efficient Hybrid APFC Panels, which offer high power factor correction in a modern-day electrical system. Our Hybrid APFC solutions ensure a decrease in electricity penalties, an increase in power quality, minimization of switching disturbances and an increase in overall power consumption efficiency.
FAQ's
A Hybrid APFC Panel is a high-tech power factor correction system that uses a combination of contactor-based and thyristor-based switching to achieve a combination of cost-effective and high-speed reactive compensation of power.
We also sell Hybrid APFC Panels that react more quickly to sudden changes of loads with thyristor switching, and steady loads with contactors. This is to ensure improved performance during dynamic loads.
Hybrid APFC Panels are best suited to industries where the loads are quickly varying to offer instant correction, less switching transients as well as better power quality.
