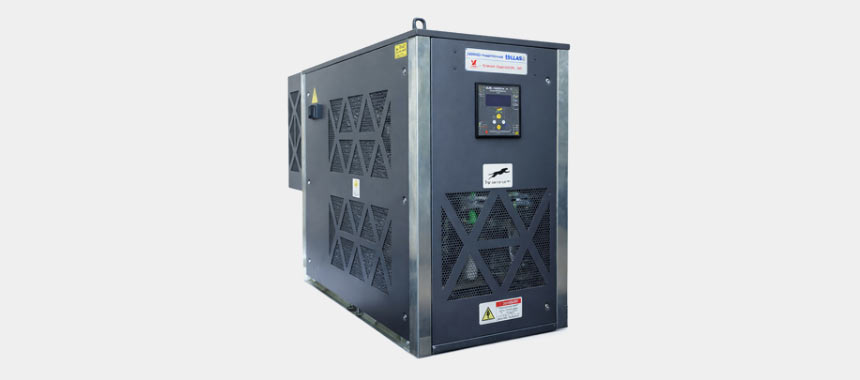

Servo Voltage Stabilizer Manufacturers in Pune
PQI Electrical & Automation is well known Static & Servo Voltage Stabilizer Manufacturers in Pune, Suppliers, Dealers and Services in Pune. We offer high-performance Type Static and Servo Voltage Stabilizers, which are used to provide a stable and reliable voltage supply to industrial and commercial activities. We also have high-end voltage correction devices, which ensure that your equipment is not harmed by fluctuations like overvoltage, under voltage, and surges.
About Static & Servo Voltage Stabilizer
Static and Servo Voltage Stabilizers are advanced electrical appliances that are aimed at controlling and sustaining a fixed output voltage even in the face of variation in the input power supply. The stabilizers safeguard delicate equipment against the fluctuations of voltages, including overvoltage, undervoltage, spikes, and surges that may lead to malfunction, excessive heat or even damage.
Types of Static and Servo Voltage Stabilizer
As leading Static and Servo Voltage Stabilizer Manufacturers in Pune, offering the following Types:
- Air-Cooled Servo Stabilizers: Cooling is done by using fans and can be applied to low to medium power requirements.
- Oil-Cooled Servo Stabilizers: Insulating oil is used to cool down the heat, which is suitable for high power, industrial and harsh conditions.
- Single-Phase Servo Stabilizers: These are applied to residential, small-scale business, or a particular single-phase industrial equipment.
- Three-Phase Servo Stabilizers: Area of use is industrial, commercial and high power (e.g., CNC machine, hospital).
- Digital/Microprocessor-Controlled Stabilizers: Use the current digital control systems to operate the stabilizers at a faster rate with very precise voltage control.
Technical Specifications of Static and Servo Voltage Stabilizer
As well-known Static and Servo Voltage Stabilizer in Pune, we provide Specifications such as:
| Input Voltage Range | ±15% to ±30% (customizable as per requirement) |
| Output Voltage | 415V AC (3 Phase) / 230V AC (Single Phase) |
| Output Voltage Accuracy | ±1% (Static) / ±1% to ±2% (Servo) |
| Frequency | 50 Hz / 60 Hz |
| Capacity Range | 5 kVA to 3000 kVA (or higher on request) |
| Phase | Single Phase / Three Phase |
| Response Time | < 20 ms (Static) / 10–50 Volts per second (Servo) |
| Correction Type | IGBT / Thyristor Controlled (Static) / Servo Motor with Variable Transformer (Servo) |
| Efficiency | ≥ 95% to 98% |
| Overload Capacity | 110%–150% for short duration (as per design) |
| Protection Features | Over/Under Voltage, Overload, Short Circuit, Phase Failure, Surge Protection |
| Cooling System | Air Cooled / Oil Cooled (for higher capacities) |
| Insulation Class | Class B / F |
| Ambient Operating Temperature | 0°C to 50°C |
| Enclosure Protection | IP21 / IP23 / IP42 / IP54 (as required) |
| Display & Monitoring | Digital Meter / LCD Display with Input & Output Monitoring |
| Compliance Standards | IS / IEC Standards (as applicable) |
Features of Static & Servo Voltage Stabilizer
We are Static & Servo Voltage Stabilizer Suppliers in Pune, offering all upgraded multiple features such as:
- Large Input Voltage Range: Have developed our stabilizers to work effectively despite great input voltage variations.
- Quick Response Time: Servo voltage stabilizer offer fast voltage correction, particularly in the case of the static stabilizers, to avoid damage to the delicate equipment.
- High Efficiency: Automatic Voltage Stabilizer provide energy-efficient systems that have low power wastage and better operational efficiency.
- Overload protection and short circuit protection: We combine modern protection measures to ensure the safety of the equipment that is connected to the system against electrical faults.
- Digital Display / Monitoring: Servo Controlled Voltage Stabilizer have digital meters with user-friendly characteristics to monitor real-time data on input/output voltage and parameters of the system.
Applications of Static & Servo Voltage Stabilizer
As Static & Servo Voltage Stabilizer Dealers in Pune, our all types are used in various types of industrial sectors such as:
- Process Industries: Processes that we serve include pharmaceutical, textile, plastic, and food processing industries, where stability of voltage is important to maintain the same quality of output.
- Commercial Buildings: Our Static Voltage Stabilizer are installed in commercial buildings in offices, malls, hotels and hospitals to secure the HVAC systems, elevators and electrical infrastructure.
- Data Centers/ IT Facilities: Voltage Stabilizer provide clean and stable power to protect the servers, networking systems, and sensitive electronic systems.
- Institutions: Our protection includes medical equipment that has to be safeguarded against voltage, e.g., MRI machines, CT scanners, and laboratory equipment.
- Schools and Laboratories: Our standard products are stable voltages for the research equipment, computer laboratory, and technical training school.
Why choose us?
As Providers of high-quality Static & Servo Voltage Stabilizer Services in Pune Here’s why we stand out:
- Technical Expertise: Our expertise in power quality and electrical systems is high, and therefore can provide efficient and reliable solutions in stabilization.
- Energy Saving Focus: We offer stabilizers that decrease the energy loss and enhance the performance of the entire system.
- Complete Support: We provide full support in selecting systems, guidance in installation and after-sales support and maintenance.
PQI Electrical & Automation is leading Static & Servo Voltage Stabilizer Manufacturers in Pune, Suppliers, Dealers and Services in Pune. We provide quality and high-performance Static and Servo Voltage Stabilizers that provide reliability and long-term voltage assurance to your electrical loads and systems. Our specializations are quality engineering, tailor-made solutions, and high-technology to protect your equipment against voltage variations and power upheavals.
FAQ's
Yes, we plan and produce customized stabilizers with the input voltage range, load and usage requirements.
Yes, we combine overload, short circuit, surge protection and other safety features in making sure that the equipment is 100 percent safeguarded.
Yes, we offer technical guidance during installation and good after-sales services as well as maintenance services so that the performance is long-term.
